ISX031 Sensor Automotive CMS DMS Lens with Low Distortion IP69 YT-7619-C1

YT-7619-C1: The Vanguard of Automotive Electronic Rearview Mirror Technology

Revolutionizing Rearview Clarity

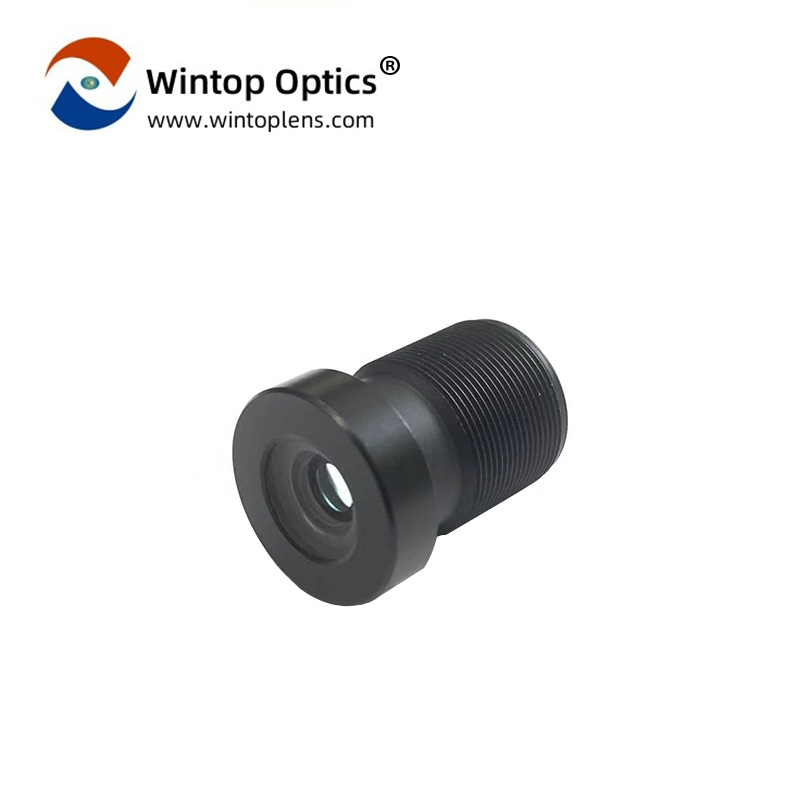

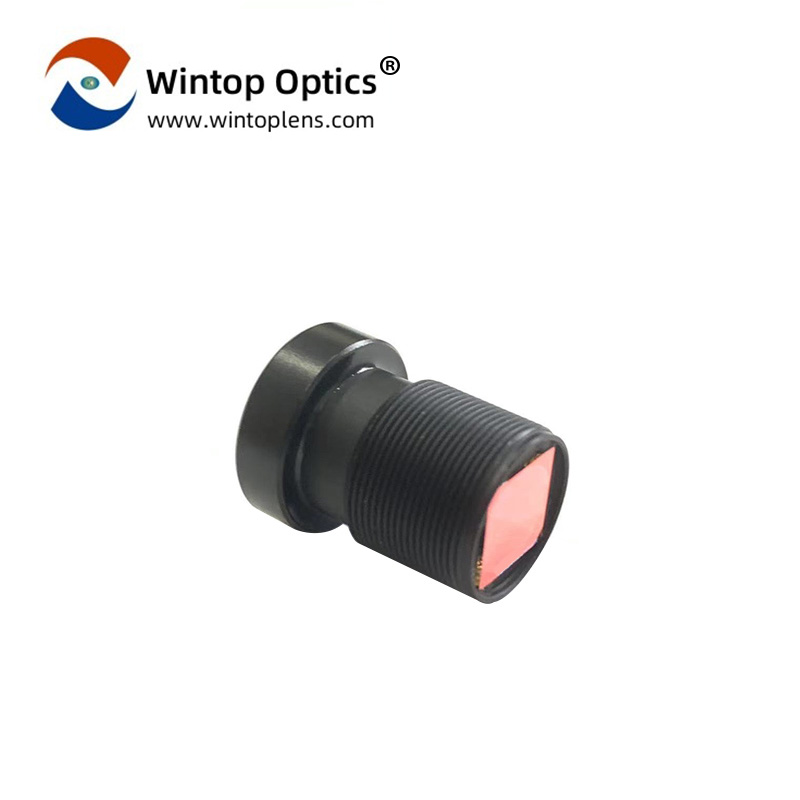

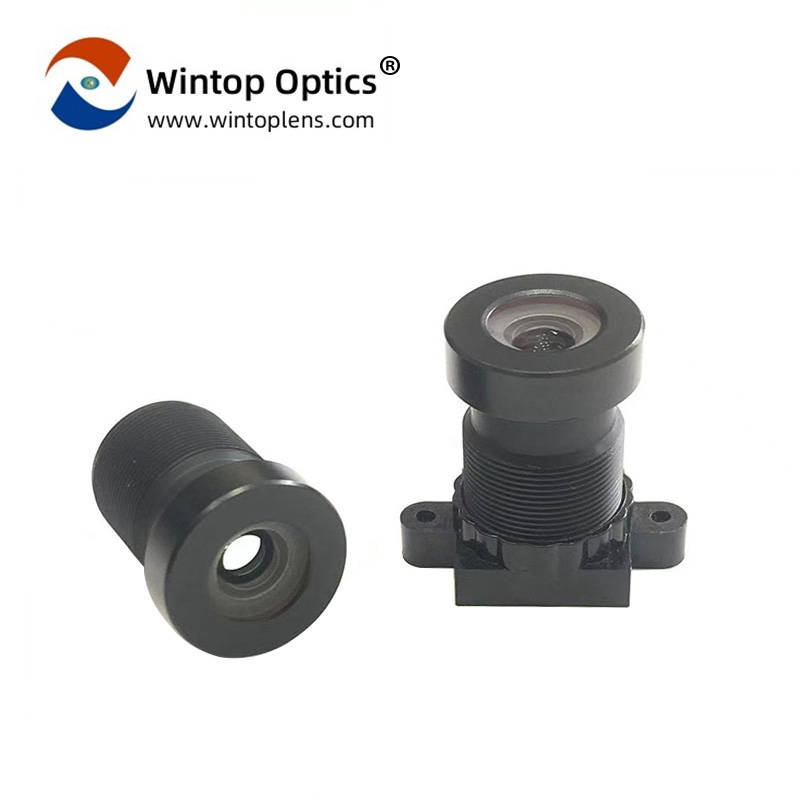

The YT-7619-C1 electronic rearview mirror CMS lens is a cutting-edge innovation in automotive vision enhancement. With an optical focal length (EFL) of 5.49mm, a total length (TTL) of 20.45mm, and a Back Focal Length (BFL) of 6.43mm, this lens offers precision imaging that significantly upgrades the driving experience.

High-Definition Imaging with a Tailored Field of View

Designed to match the high-resolution CMOS sensor ISX031 (1937*1553), the YT-7619-C1 auto CMS lens achieves a 3-million-pixel clarity, ensuring that every detail is captured with exceptional sharpness. The lens provides an 83-degree diagonal field of view (Dfov), a 65-degree horizontal field of view (Hfov), and a 50.5° vertical angle, coupled with a maximum imaging circle diameter of 7.5mm for a well-rounded perspective.

F/NO1.7 Aperture for Enhanced Night Visibility

Equipped with an F/NO1.7 large aperture, the YT-7619-C1 car camera lens is crafted to excel in low-light conditions, ensuring that drivers have a clear view of the road ahead even during nighttime travel. This feature is essential for maintaining visibility and safety in all lighting environments.

Customizable Mounting Solutions

Featuring an M12 mount, the YT-7619-C1 automotive CMS lensoffers a standardized and secure connection to a wide range of automotive camera systems. The front cover diameter is 14mm, and the lens can be customized to an AA Gluing lens according to specific project requirements, ensuring adaptability for various applications.

Durable Construction with Advanced Optical Technology

The YT-7619-C1 car camera lens is encased in a robust metal barrel, showcasing its high-quality build. It utilizes a full-glass lens structure and includes a 650nm IR filter, ensuring excellent MTF performance and reliability. This advanced lens technology provides clear and vibrant images in all driving conditions.

Rugged and Reliable for Extreme Conditions

With an IP69K rating for dust and water resistance and TS16949 certification, the YT-7619-C1 imaging lens is built to withstand the harshest environments. It operates reliably in temperatures ranging from -40℃ to +85℃, making it a dependable choice for all weather conditions.

Versatile Applications for Extended Utility

The YT-7619-C1 optical lens's utility extends beyond electronic rearview mirrors. It is suitable for a multitude of applications, including streaming rearview mirrors, in-cabin passenger monitoring, electronic rearview mirrors, streaming media, action cameras, handheld gimbals, drones, intelligent robot cameras, AI cameras, consumer electronics, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring, USB surveillance, IP cameras, and facial recognition cameras.

In Summary

The YT-7619-C1 electronic camera lens is the epitome of automotive electronic rearview mirror technology, offering a combination of high-definition imaging, a tailored field of view, and superior night vision capabilities. Its durable construction and advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-7619-C1, ensuring that every journey is safer and more informed with clear rearview streaming.
