DMS Lens F2.0 Hfov 50 60 Deg for In-carbin Monitoring Camera Lens YT-7613-A7

YT-7613-A7: The Sentinel of In-Cabin Vigilance for Automotive Safety

In-Cabin Surveillance Tailored for Clarity and Comfort

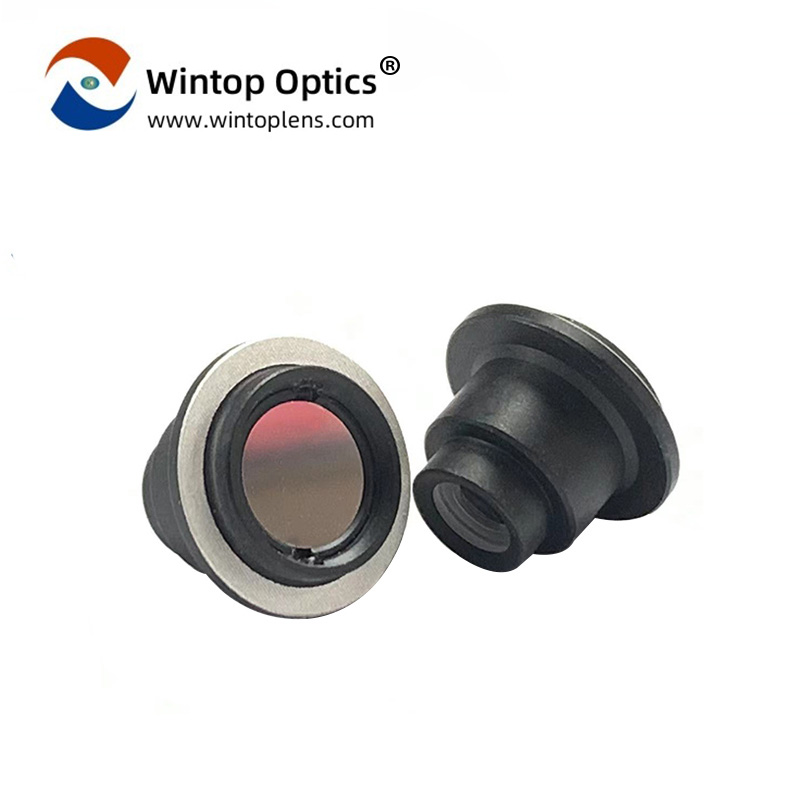

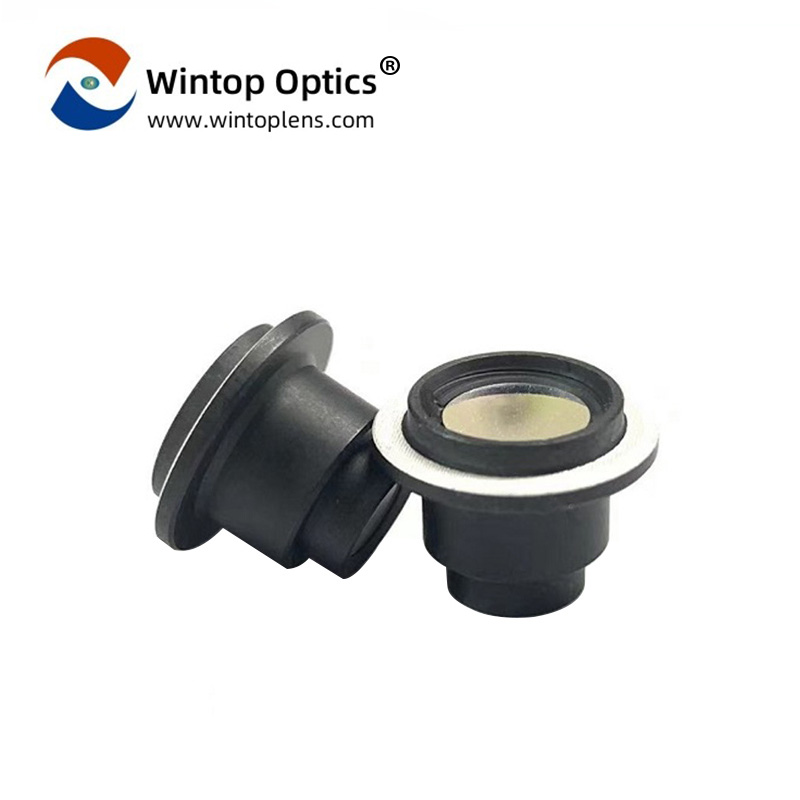

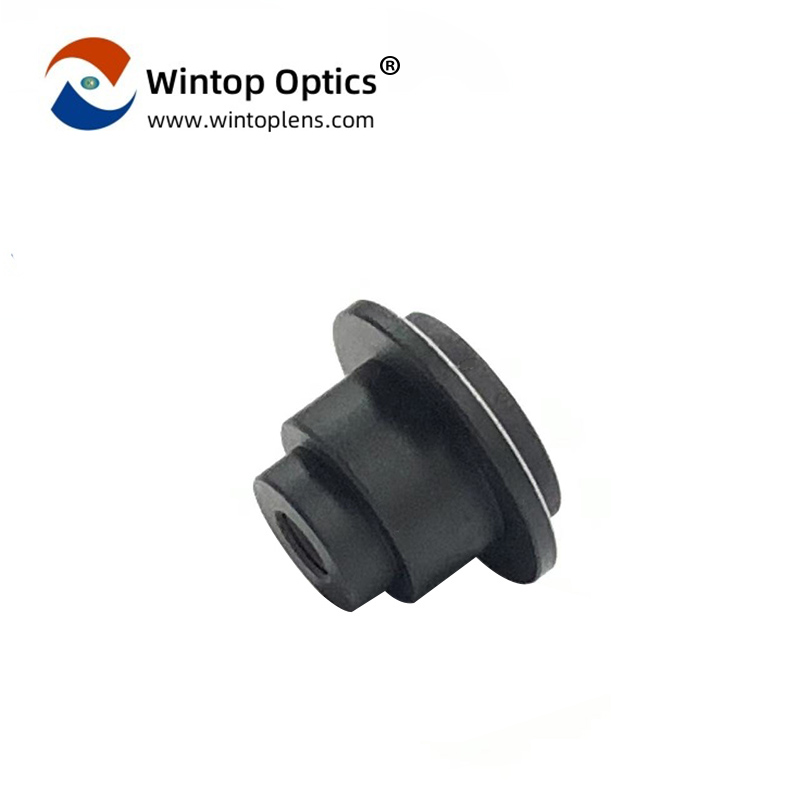

The YT-7613-A7 car camera lens is a state-of-the-art in-cabin driver monitoring lens designed to enhance automotive safety through continuous vigilance. With a EFL 4.5mm optical focal length and an TTL 11.4mm optical total length, featuring a Back Focal Length (BFL) of 5.61mm, this lens is engineered to capture clear and detailed images within the vehicle's cabin.

High-Resolution Imaging for Precision Monitoring

Equipped to match the CMOS sensor AR0144 (1/4'' inch 1280*800), the YT-7613-A7 DMS lens achieves 2 million clear pixels, ensuring high-resolution imaging. The OMS lens provides a 62-degree diagonal field of view (Dfov), a 51-degree horizontal field of view (Hfov), and a 31° vertical angle, with a maximum imaging circle diameter of 4.8mm, allowing for precise monitoring of the driver and passengers.

F/NO 2.0 Aperture for Drowsiness Detection in Various Lighting Conditions

Featuring an F/NO2.0 aperture, the YT-7613-A7 driver monitoring lens is designed to perform exceptionally well in different lighting conditions, from bright daylight to dimly lit interiors. This large aperture is crucial for detecting signs of driver drowsiness or fatigue, ensuring timely alerts to maintain safe driving.

Customizable Mounting Options for Seamless Integration

The DMS lens comes with an AA Gluing interface (dia 9mm) and a lens front cover diameter of 6mm, offering versatile mounting solutions. It can be customized to an M12 mount lens (M12*P0.5) according to specific customer project requirements, ensuring compatibility with various in-cabin camera systems.

Durable Construction with Advanced Optical Technology

The YT-7613-A7 occupant (children / pets)monitoring lens is encased in a robust metal barrel, showcasing its high-quality build. It utilizes a all-glass lens structure and includes a 940nm narrow-band IR filter, ensuring excellent MTF performance and reliability. This advanced lens technology provides clear and vibrant images, even in challenging lighting conditions.

Wide-Ranging Applications for Extended Utility

The YT-7613-A7 dms lens is versatile, extending its utility beyond driver monitoring. It is suitable for in-cabin passenger monitoring camera, pet monitoring camera, infant surveillance camera, electronic rearview mirrors camera, streaming media camera, action cameras,drones camera, intelligent robot cameras, AI cameras, consumer electronics camera, USB high-definition cameras, AI robot surveillance cameras, video conferencing cameras, smart home monitoring camera, USB surveillance camera, IP cameras, and facial recognition cameras etc.

In Summary

The YT-7613-A7 car dms lens is the epitome of in-cabin surveillance technology, offering a combination of high-resolution imaging, a wide field of view, and superior night vision capabilities. Its durable construction and advanced features make it an indispensable tool for vehicle safety and a wide range of imaging applications. Experience the versatility and excellence of the YT-7613-A7, ensuring that every journey is safer and more informed with comprehensive in-cabin surveillance.
