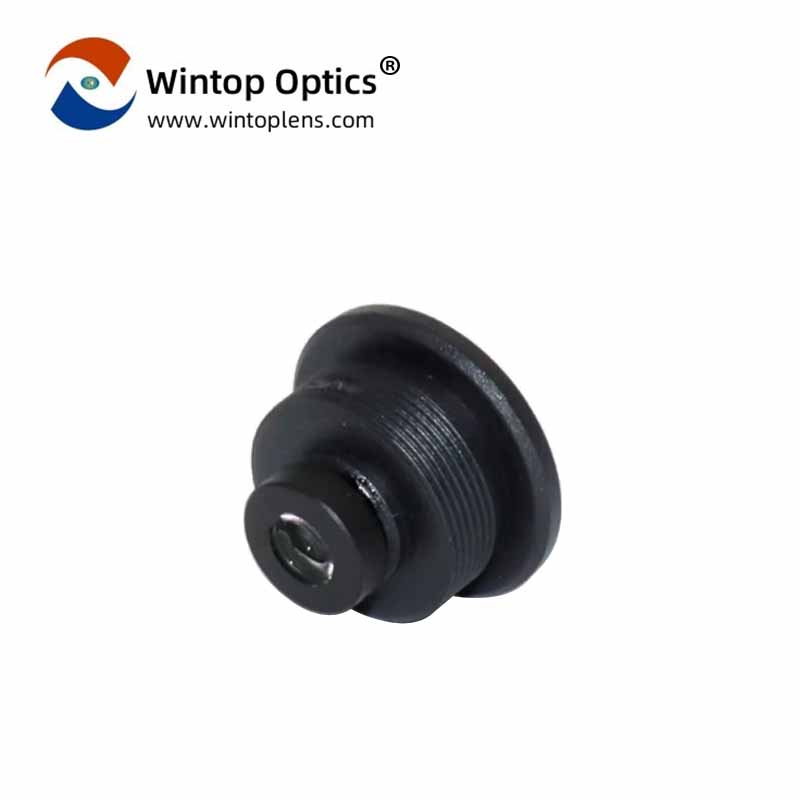

360-Degree Lens Market 1/2.8'f/2.4 High Resolution Camera Module Components Automotive ADAS Surround Camera Lenses YT-6032-F2-B

  • 210 degree wide-angle motion photography
  • high-resolution security lens
  • largest aperture camera lens
  • mount m12 lens
  • 型号 :

    YT-6032-F2-B
  • 芯片 :

    1/2.8''
  • F/NO :

    2.4
  • 焦距 :

    1.05
  • 光学总长TTL :

    14.9
  • 螺纹尺寸 :

    M12*P0.5
  • 视场角(水平/垂直/对角) :

    210/210/210
  • 结构 :

    6G

YT-6032-F2-B Exploring Barrel Distortion

know more about YT-6032-F2-B  surround view lens parameters
MAX Img-Circle(mm)
Ø3.05
Focal Length(EFL) 1.05
F/NO.(Infinite) 2.4
Optical TTL 14.9
Back Focal Length 2.78
Flange Back Length 1.83
TV Distortion -18%
Storage Temperature -40℃~+85℃
CRA 10.5°
Infrared
NO
Wave Length

Tavg>-88% @ 420-600 nm

T-50% @650+10nm

Tavg<-3%  @ 700-1000 nm

T<5%  @ 1050 nm

Dust Level

IP69K



F/2.4 large aperture for high definition image quality

A large aperture can get better background blur effect. Many people choose the full frame size to pursue better background blur effect. In fact, increasing the aperture can achieve better background blur. In addition, a large aperture can improve the image quality of dark light shooting. Because the aperture is increased, you can increase the shutter speed, or reduce the iOS, which reduces the risk of jitter, or get less noise and a purer picture for better image quality.

360-Degree car surround camera

A 360-degree surround car helps provide a greater field of view when reversing, reducing the risk of accidents due to blind spots of sight. The 360-degree surround shadow system is able to make parking and parallel parking easier for drivers as it provides a panoramic view of the vehicle's surroundings. This is useful for novice drivers to help them more accurately judge the distance to surrounding objects and avoid scratching.

6G all-glass fixed-focus lens

The lens is composed entirely of glass to efficiently transfer and focus light. Compared to other materials such as plastic or resin, glass lenses can provide higher quality images and have better optical properties. Glass has high hardness and wear resistance, making it resistant to scratches and damage.
