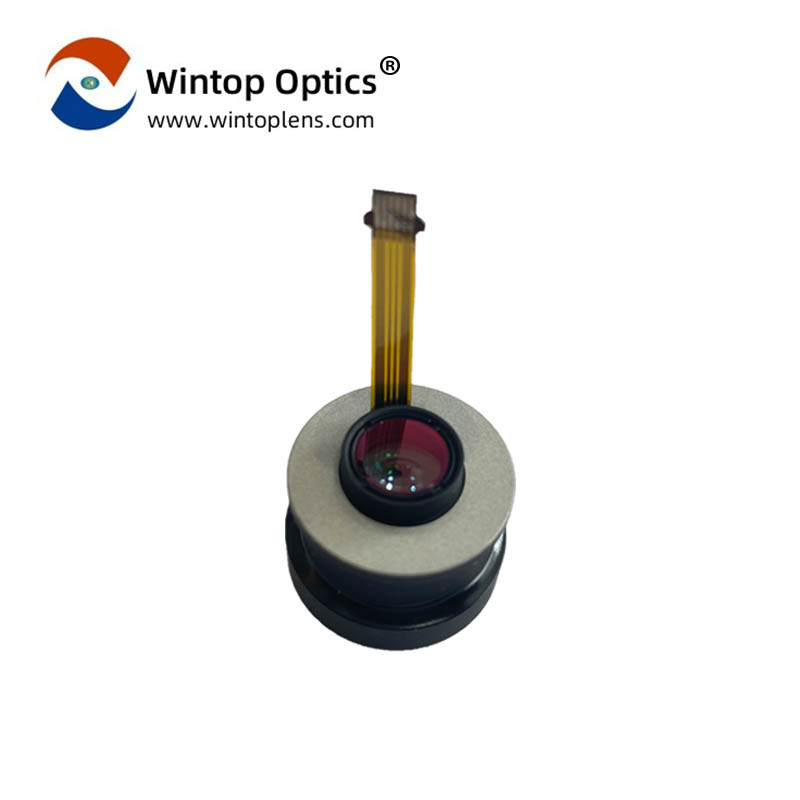

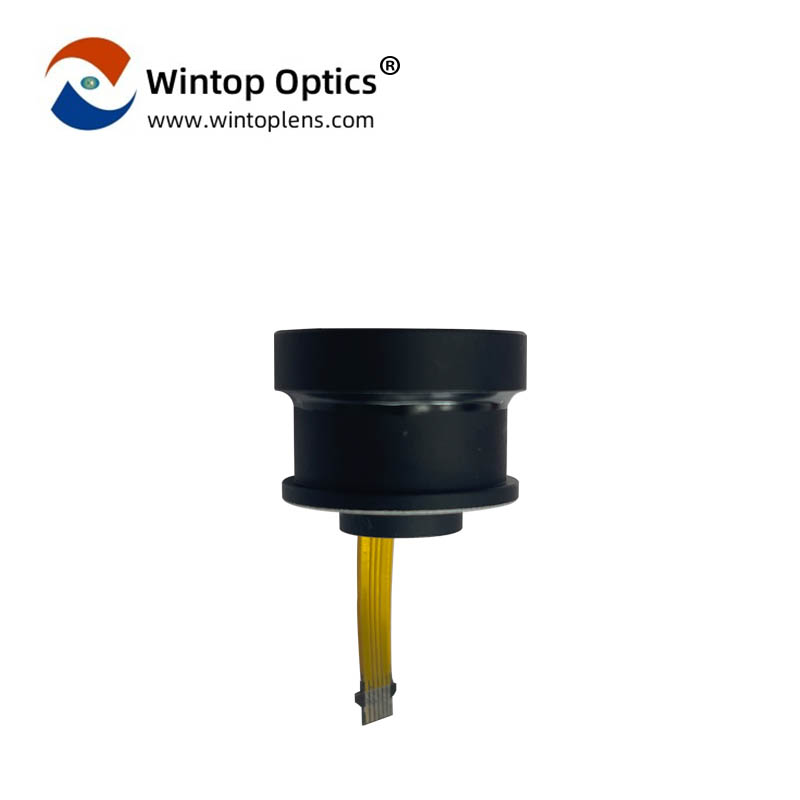

1/2.6" OX03C10 f/1.8 Low Distortion AA Heated Car Camera Lens YT-7630-A8-A

  • Heated CMS Car Camera Lens Factory
  • IP69K Waterproof Heated CMS lenes Quick Defrosting and Defogging
  • 1/2.6 Sensor OX03C10 Low Distortion Lens for Camera Monitor System
  • 6G Structure F1.8 Aperture 5.49mm Focal Length AA Lens
  • Car Camera CMS Lenes
  • 型号 :

    YT-7630-A8-A
  • 芯片 :

    OX03C10
  • F/NO :

    1.8
  • 焦距 :

    5.49mm
  • 光学总长TTL :

    20.16
  • 螺纹尺寸 :

    AA19-10-8.45
  • 视场角(水平/垂直/对角) :

    64°/38°/79°
  • 结构 :

    6G+1IR

YT-7630-A8-A:Heated CMS lenses delivers all-weather, high-definition imaging for vehicle camera monitoring systems (CMS)

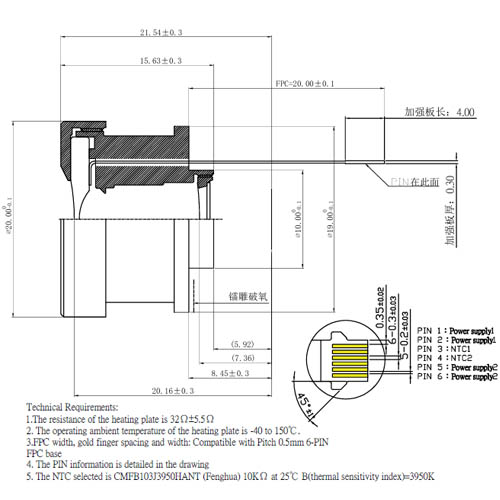

Know More About YT-7630-A8-A CMS Car Camera Lens Parameters
Img-Circle(mm) ∅7.5
EFL(mm) 5.49
F/NO. 1.8
Optical TTL 20.16
Mechanical TTL 21.54
Back Focal Length 7.36
Flange Back Length 8.54
TV Distortion <-8.3%
Relative Illumination 75%
CRA 15°
Pixel Size(μm) 3.0um*3.0um
Storage at Temperature -40℃~+85℃
Recent Camera Distance 0.2
Infrared Non-infrared
Wavelength @420~620nm     Tavg≥88%
@650nm±10nm  T=50%
Dust Level IP69K
Structure 6G+1IR



Low Distortion Meets Geometric Accuracy


Within the full temperature range of -40 ℃ to +85 ℃, this heated CMS car camera lens strictly controls the maximum image field distortion rate within the full-frame field of view within -8.3% through a precision temperature-controlled heating unit and thermal compensation optical design; even in extreme environments, the optical path offset and lens group deformation caused by thermal gradients are corrected in real time to ensure that the geometric deformation of the image is minimal, meeting the strict requirements of the vehicle monitoring system for geometric accuracy.



Precision Engineering for Detailed Clarity


The YT-7630-A8-A is a 5.49mm focal length lens and overall length of 20.16mm,AA Structure, engineered to provide detailed and low distortion clarity. This precision craftsmanship ensures that every pixel is captured with the utmost precision, resulting in a high-resolution image that empowers safe and confident driving.


High-Definition Imaging with OX03C10 Sensor


Equipped with the OX03C10 sensor, the YT-7630-A8-A delivers 2.5‑megapixel (MP) with a resolution of 1920*1200. This high-definition imaging capability ensures that your vehicle's camera system captures every detail with exceptional clarity, whether you're reversing, parking, or simply monitoring your surroundings.


Optical Design Optimized for Infrared Band


The YT-7630-A8-A heated lens is equipped with IR, which has been optimized for the infrared band to avoid image blur or thermal focus drift caused by wavelength differences in traditional lenses, thereby ensuring white balance and image clarity.



Rugged and Reliable with IP69K Rating


As a car-grade lens, the YT-7630-A8-A is built to withstand the toughest conditions. With an IP69K rating, this lens is waterproof, dustproof, and designed to maintain optimal performance even in the most challenging environments. Trust this lens to deliver reliable service, no matter where your journey takes you.

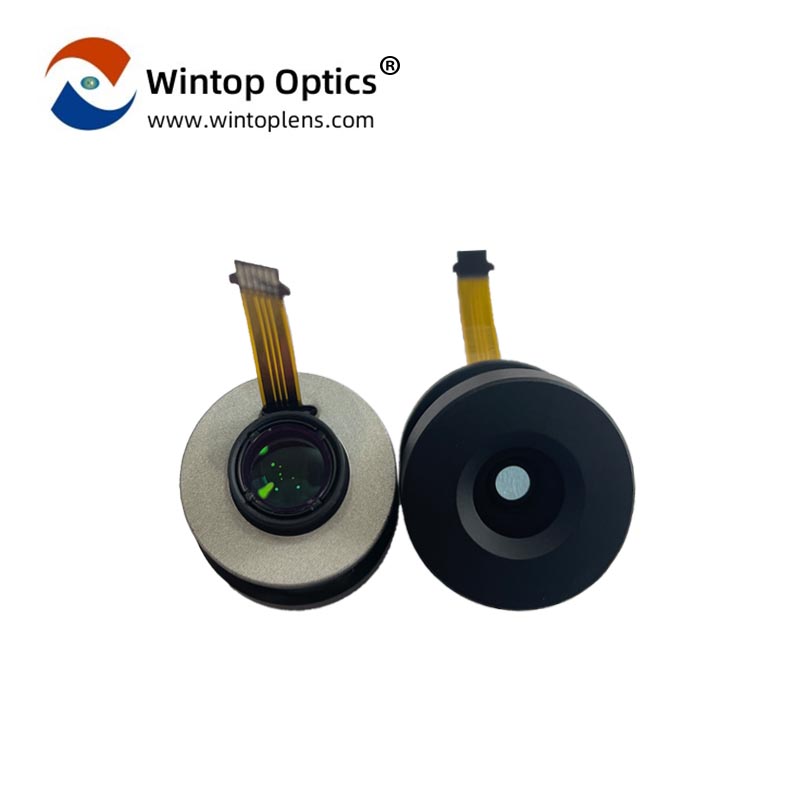

Featuring Advanced FPC Heating Material


The YT-7630-A8-A featuring advanced FPC heating material, FPC material heats up quickly and evenly—even at –40 °C it swiftly clears moisture and ice from the lens surface. engineered to combat extreme cold, snow, and fog. It delivers all-weather, high-definition imaging for vehicle camera monitoring systems (CMS).



Conclusion: The Pinnacle of Rearview Technology


Whether in a snow-covered wilderness or a sun-scorched desert, the heated CMS lens YT-7630-A8-A will protect every ever-changing vision with its consistent excellent performance and help every decision to be implemented accurately.

Heated car camera lens
