型号 :
YT-4861芯片 :
1" （Φ16、12.8x9.6）F/NO :
F2.0--16焦距 :
20mm光学总长TTL :
66.03mm视场角（水平/垂直/对角） :
H/V 1" 27.20° x 20.82° 2/3" 18.30° x 14.36° 1/1.8" 15.06° x 11.51° 1/2" 13.30° x 10.15°结构 :
Aluminum alloy (anode black) +9GDistortion :
1"（-0.7%） 1/2"（-0.5%） 1/3"(-0.15%)Zoom :
-Mount :
C-MountsResolution :
10Mega PixelM.O.D :
0.25m|
Category
|
Parameters
|
|

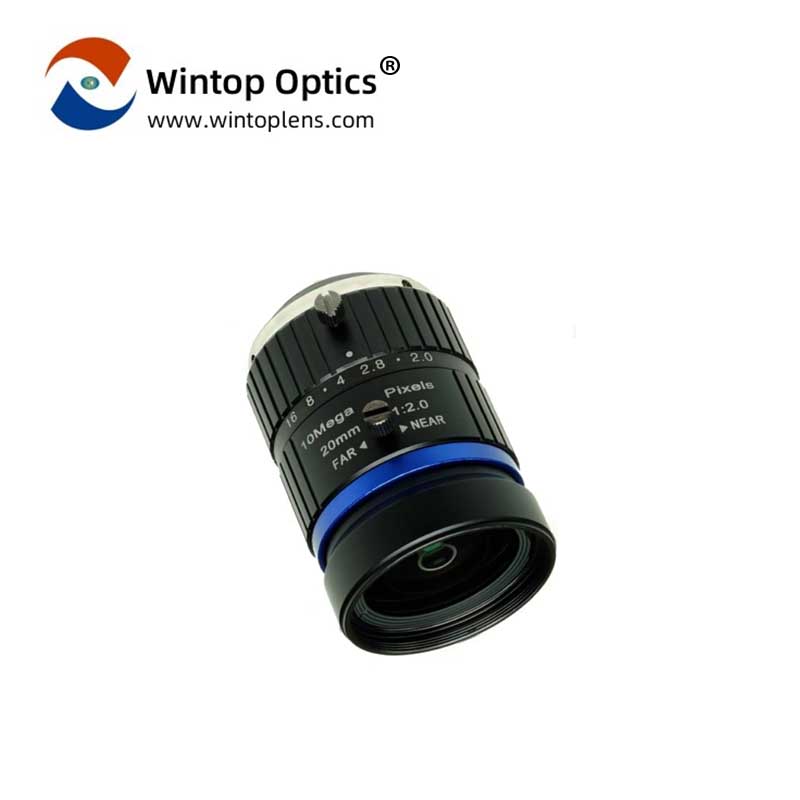

Model No
|
YT-4861
|
|
Focal Length
|
20mm
|
|
Format
|
1" （Φ16、12.8x9.6）
|
|
D/fˊ
|
F2.0--16
|
|
Mount
|
C-Mounts
|
|
H/V
|
1" 27.20° x 20.82°
|
|
2/3" 18.30° x 14.36°
|
|
|
1/1.8" 15.06° x 11.51°
|
|
|
1/2" 13.30° x 10.15°
|
|
|
Back Focal Length
|
17.53mm
|
|
Optical length
|
66.03mm
|
|
Iris type
|
Manual /Lock (W/Lock) |
|
MTF
|
10Mega Pixel
|
|
M.O.D
|
0.25m
|
|
Dimension
|
Φ37.00x51.80
|
|
Weight
|
137.0g
|
|
Distortion
|
1"（-0.7%） 1/2"（-0.5%） 1/3"(-0.15%)
|
|
Structure
|
Aluminum alloy (anode black) +9G |
|
Remarks
|
UV M34.0x0.5P
|
High resolution images: The YT-4861 delivers high quality images at a resolution of 10 megapixels (10MP), ensuring that detailed images are captured.
Advanced image sensor: The use of advanced image sensor technology to provide superior image quality and photographic performance, adapt to different light conditions.
Powerful features: The camera is equipped with a variety of features, including autofocus, white balance adjustment, image enhancement, etc., to meet the needs of different applications.
A variety of application scenarios: suitable for industrial testing, monitoring systems, medical imaging and other applications, can provide clear and accurate image data support.
Reliability and durability: The YT-4861 is manufactured with high quality materials and reliable processes, providing excellent durability and stability for continuous operation in harsh environments.
